ProTool V-Spec Flagship Enclosed Drone Cleaning System — Command Port™, Dual HydroPanel 4.5 & Skid Nexus Pro

Flagship Performance. Built to a Standard.

One high-performance cleaning system is impressive.

A repeatable platform that delivers the same capabilities across an entire operation? That's a different level.

The ProTool V-Spec Flagship Enclosed Drone Cleaning System combines our premier drone cleaning technology with the consistency of a standardized, program-specific build.

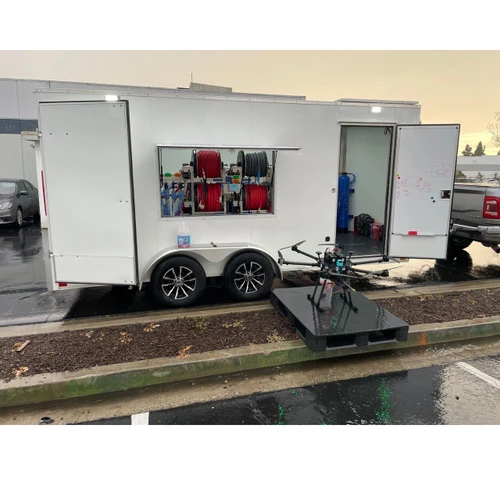

Designed for a 7FT × 16FT enclosed trailer, this system integrates an 8.5 GPM / 4,000 PSI Honda GX690 pressure washer, Honda GX200-powered P40 soft wash system, dual HydroPanel 4.5 RO/DI purification systems, and Skid Nexus Pro remote controls into one commercial cleaning platform.

At the center of the operation is the ProTool Command Port™, our signature pop-out exterior control station that brings essential equipment and controls to the curbside.

Add up to 9 GPM of rated pure water production, 400 gallons of dedicated water storage, and four large-capacity electric hose reels, and you've got a system designed for demanding commercial drone cleaning.

The V-Spec difference is consistency: a defined equipment configuration that can be reproduced for future builds within an approved customer program.

Same standard. Same capabilities. Built to keep the operation moving.

V-Spec. Purpose-Built for Repeatable Performance.

Every cleaning operation has its own requirements.

But once you've developed a configuration that works, you shouldn't have to redesign it every time you need another unit.

That's the idea behind ProTool V-Spec.

V-Spec builds are developed around an approved customer or fleet specification, establishing a consistent platform for equipment selection, layout, operation, and future production.

The V-Spec Advantage

• Defined equipment configurations

• Repeatable layouts across approved builds

• Consistent operator controls

• Standardized component selection

• Simplified equipment familiarization

• Long-term parts and technical support

• A practical foundation for multi-unit deployment

For organizations operating equipment across multiple crews or locations, that consistency can make training, service, and fleet planning easier.

Build the standard once. Put it to work again and again.

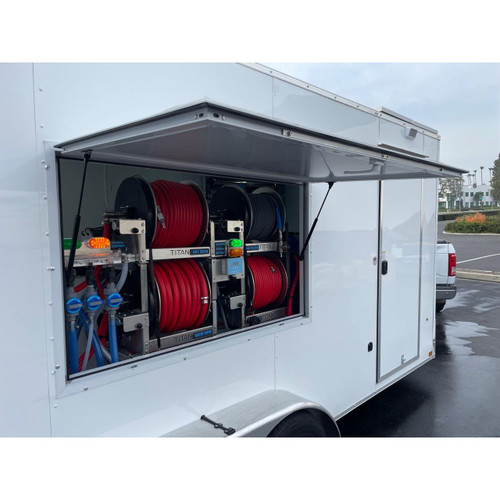

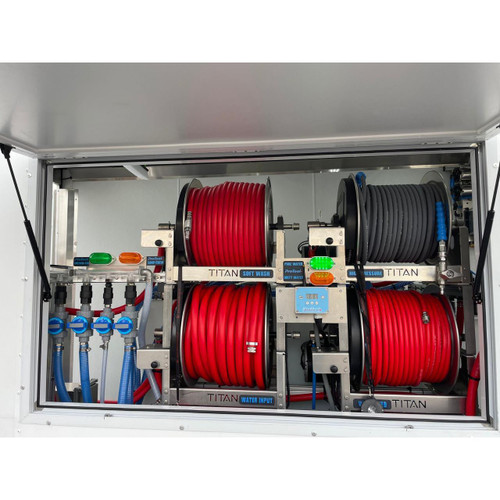

Command Port™. The Trailer's Control Center.

Most enclosed trailers require operators to step inside to access critical equipment.

The ProTool Command Port changes that.

Our signature pop-out exterior control station puts essential cleaning equipment and controls within reach from outside the trailer.

Curbside Access Includes

• Four large-capacity electric hose reels

• 3/4-inch chemical metering manifold

• Remote-control equipment

• System indicator lights

• Critical operating controls

The Command Port keeps the cleaning equipment protected within the enclosed trailer while giving operators convenient access to the functions they use throughout the workday.

For a V-Spec program, it also establishes a familiar operator interface across similarly configured units.

All your controls curbside. All your equipment protected.

Dual HydroPanel 4.5. Up to 9 GPM of Pure Water.

Commercial drone cleaning can consume a tremendous amount of purified water.

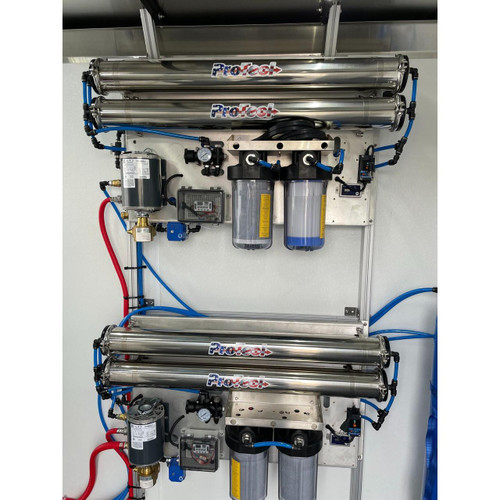

This V-Spec system includes two ProTool HydroPanel 4.5 RO/DI purification systems, providing a combined rated output of up to 9 gallons per minute.

The dual HydroPanel configuration is designed to support high-volume drone cleaning, water-fed pole cleaning, and other pure water applications.

A dedicated DI polishing tank provides final purification after the reverse osmosis systems remove much of the incoming dissolved mineral content.

Compared with DI-only water production, the RO/DI arrangement can substantially reduce resin consumption.

Pure Water Equipment

• Two ProTool HydroPanel 4.5 RO/DI systems

• Up to 9 GPM combined rated output

• Dedicated DI polishing tank

• 200-gallon purified water storage

• Integrated pure water delivery

• Support for drone and water-fed pole cleaning

Actual production depends on incoming water quality, temperature, pressure, and operating conditions.

Nine gallons per minute of rated pure water production. That's serious capacity.

8.5 GPM at 4,000 PSI. Commercial Pressure Washing Power.

High-reach drone cleaning demands reliable water delivery.

The integrated pressure washing system uses a Honda GX690 engine to deliver 8.5 GPM at 4,000 PSI.

This high-output system supports compatible drone pressure washing equipment, commercial rinsing, and traditional pressure washing applications.

Skid Nexus Pro integration allows remote engine start/stop and switching between raw tap water and purified water.

That gives operators the flexibility to choose the appropriate supply for the cleaning method without repeatedly returning to the trailer.

8.5 GPM. 4,000 PSI. Ready for big buildings.

P40 Soft Washing. Dedicated Chemical Delivery.

Not every surface should be cleaned with high pressure.

The V-Spec system includes a ProTool P40 soft wash pump powered by a Honda GX200 engine, providing dedicated chemical delivery for professional drone soft washing and traditional exterior cleaning.

Separate chemical storage and a large 3/4-inch metering manifold support controlled mixing of water, bleach, and surfactant.

Skid Nexus Pro remote functions provide engine start/stop, rinse switching, and surfactant control.

The pressure washing and soft washing systems serve different purposes, giving crews flexibility across building materials and cleaning requirements.

Pressure when you need it. Chemistry when you don't.

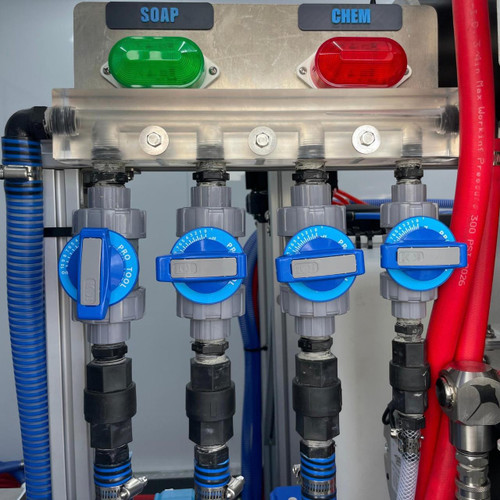

3/4-Inch Chemical Metering. Big Plumbing for a Big Pump.

The P40 is designed for high-volume chemical delivery.

Its supporting plumbing needs to keep up.

The integrated ProTool 3/4-inch chemical metering manifold provides centralized adjustment of water, bleach, and surfactant proportions.

Mounted for access through the Command Port, the manifold allows operators to adjust their cleaning mixture without climbing into the trailer.

It's a practical feature that supports consistent operation across a standardized V-Spec configuration.

Big pump. Big plumbing. The right mix for the job.

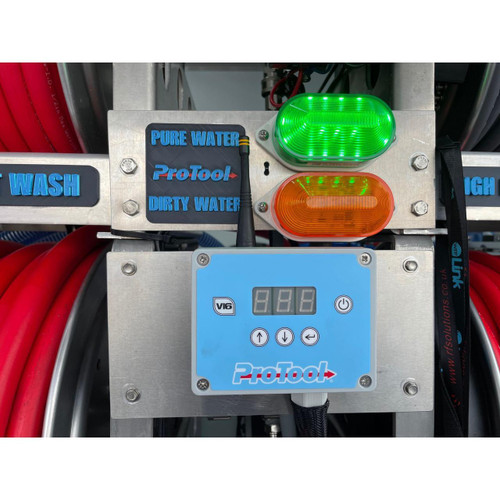

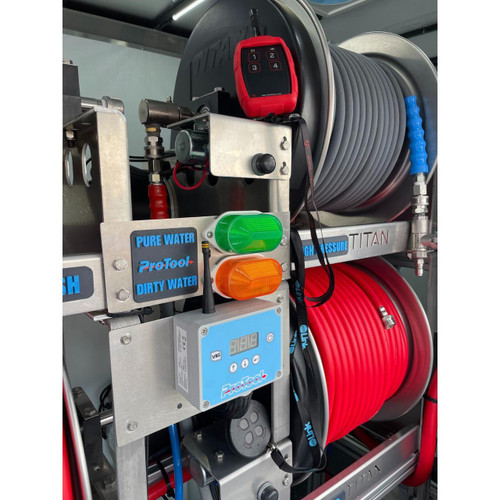

Skid Nexus Pro. Remote Control Across the Operation.

When crews are cleaning large commercial structures, unnecessary trips back to the trailer waste time.

Skid Nexus Pro integrates remote operation of the system's major cleaning functions.

Pressure Washing

• Honda GX690 remote engine start/stop

• Raw water / purified water switching

Soft Washing

• Honda GX200 remote engine start/stop

• Bleach / water rinse switching

• Surfactant on/off

Pure Water Delivery

• Dedicated ProTool water-fed pole remote controller

• Remote pure water delivery operation

Operator Interface

• Integrated system indicator lights

• Command Port access to essential controls

With a standardized V-Spec build, operators can become familiar with a defined control arrangement rather than learning a completely different system for every unit.

Same controls. Same workflow. Less running back to the trailer.

400 Gallons of Water. Raw and Pure, Kept Separate.

This V-Spec configuration features four 100-gallon slimline tanks, divided between two dedicated water supplies:

• 200 gallons of raw tap water

• 200 gallons of purified RO/DI water

The separation allows crews to use the appropriate water supply for different cleaning applications.

The pressure washer's raw-to-pure switching is integrated into Skid Nexus Pro.

And the dual HydroPanel 4.5 systems provide onboard pure water production to replenish the purified water supply.

These are dedicated water storage tanks—not wastewater recovery tanks.

200 gallons raw. 200 gallons pure. No confusion.

Dedicated Chemical Tanks. Organized and Ready.

Different cleaning methods call for different chemical solutions.

The system includes:

• 55-gallon bleach / sodium hypochlorite tank

• 7-gallon surfactant tank

• 7-gallon house wash tank for ProTool Building Cleaner

The dedicated tanks work alongside the P40 soft wash system and chemical metering manifold to support professional cleaning applications.

The separate storage arrangement is part of the defined V-Spec equipment configuration.

Different chemistry. Dedicated storage. Everything in its place.

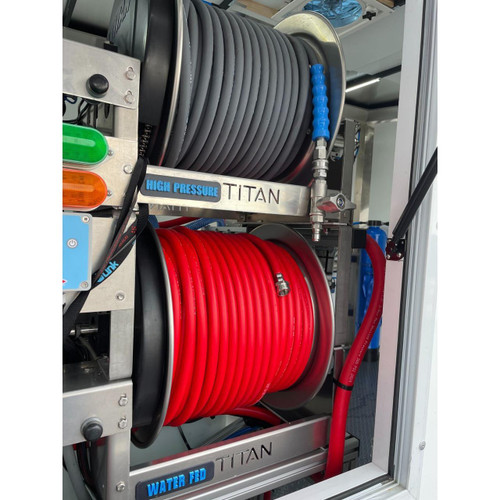

Four Electric Reels. All Curbside.

Hundreds of feet of hose are useful when you're cleaning a massive building.

Winding all of it by hand isn't.

This system includes four large-capacity ProTool electric hose reels, accessible through the Command Port.

The reel configuration is available in aluminum or full stainless steel construction according to the approved build specification.

Included Hose Package

• 120FT × 3/4-inch water input hose

• 300FT of 300 PSI ultra-light water-fed pole hose

• 300FT of 300 PSI ultra-light drone soft wash hose

• 200FT of 4,000 PSI pressure washing hose, rated for temperatures up to 275°F

The hot-water-rated pressure washing hose does not indicate that a hot-water burner is included.

Powered retrieval makes managing long hose runs easier and helps crews pack up more efficiently.

Four electric reels. All your hoses curbside. All your winding done for you.

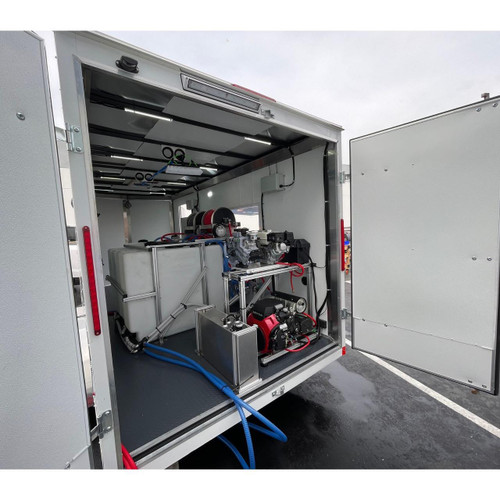

Fully Enclosed. Equipment Protected. Controls Accessible.

The system is designed for installation in a 7FT × 16FT fully enclosed trailer.

The enclosed configuration protects pumps, tanks, purification equipment, plumbing, and electrical components during transport and storage.

Side and rear access doors provide access for maintenance and service, while the Command Port makes routine operation more convenient.

For a V-Spec program, the enclosed platform also helps establish a consistent equipment arrangement across multiple builds.

Your equipment stays inside. Your controls stay within reach.

One to Five Operators. Multiple Cleaning Methods.

Large commercial projects often involve more than one cleaning technique.

Depending on the workflow, this system can support approximately one to five operators, with actual simultaneous capacity determined by equipment demand, water availability, and cleaning methods.

Supported applications include:

• Drone pressure washing

• Drone soft washing

• Drone pure water cleaning

• Commercial building and façade washing

• Water-fed pole window cleaning

• High-reach exterior cleaning

• Solar panel cleaning

• Traditional pressure washing and soft washing

Instead of requiring a completely separate equipment platform for each application, the V-Spec system brings multiple cleaning capabilities into one integrated trailer.

One platform. Multiple crews. Plenty of ways to get the job done.

Built the ProTool Way. Standardized for the Long Haul.

V-Spec is about more than producing another skid.

It's about creating a configuration that an organization can rely on, support, and reproduce.

ProTool builds are designed around practical operator access, serviceable components, integrated controls, and dependable plumbing and electrical systems.

Our skid construction approach uses an all-aluminum welded base with a bolt-together frame design.

Every complete ProTool skid undergoes in-house system testing before shipment.

And we stand behind ProTool skids and systems with a lifetime warranty, subject to applicable terms and exclusions, along with long-term technical support.

For V-Spec programs, that commitment extends to helping customers maintain a consistent equipment standard over time.

Repeatable builds. Professional construction. Long-term support.

Under the Hood — Technical Specifications

Specification	Details
Brand	ProTool
Product Program	V-Spec
Product Type	Flagship Enclosed Drone Cleaning System
Intended Trailer Size	7FT × 16FT
Trailer Configuration	Fully enclosed, side and rear access
Trailer Included	No — sourced separately
Exterior Control Station	ProTool Command Port™
Pressure Washer	8.5 GPM / 4,000 PSI
Pressure Washer Engine	Honda GX690
Soft Wash Pump	ProTool P40
Soft Wash Engine	Honda GX200
Chemical Metering	3/4-inch ProTool manifold
Pure Water Systems	2 × HydroPanel 4.5 RO/DI
Combined Pure Water Output	Up to 9 GPM rated
DI Polishing	Dedicated DI tank
Raw Water Storage	200 gallons
Pure Water Storage	200 gallons
Total Water Storage	400 gallons
Water Tank Configuration	4 × 100-gallon slimline tanks
Bleach / SH Storage	55 gallons
Surfactant Storage	7 gallons
House Wash Storage	7 gallons
Hose Reels	4 ProTool electric reels
Reel Material	Aluminum or stainless steel, per approved specification
Water Input Hose	120FT × 3/4-inch
Water-Fed Pole Hose	300FT, 300 PSI
Drone Soft Wash Hose	300FT, 300 PSI
Pressure Washing Hose	200FT, 4,000 PSI, rated to 275°F
Remote Control System	Skid Nexus Pro
Pressure Washer Remote Functions	Engine start/stop, raw/pure switching
Soft Wash Remote Functions	Engine start/stop, rinse, surfactant
Pure Water Remote	Dedicated WFP controller
System Monitoring	Integrated indicator lights
Water-Fed Pole Storage	Integrated holders
Supported Operators	Approximately 1–5, depending on workflow
Construction	All-aluminum welded base, bolt-together frame
Build Standard	Customer/program-specific V-Spec configuration
Assembly & Testing	Integrated and system-tested by ProTool
Warranty	Lifetime warranty on ProTool skid/system, terms and exclusions apply
Shipping	Excluded from free shipping

Built for the Job. Standardized for the Program.

The ProTool V-Spec Flagship Enclosed Drone Cleaning System brings together an 8.5 GPM / 4,000 PSI pressure washer, P40 soft wash system, dual HydroPanel 4.5 purification, Skid Nexus Pro remote controls, and Command Port exterior access.

With 400 gallons of dedicated water storage, four large-capacity electric hose reels, and high-output pure water production, it's designed for demanding commercial drone cleaning operations.

And with the V-Spec program, the equipment is built around a defined, repeatable configuration for consistent future deployment.

Flagship performance. V-Spec consistency. ProTool support.

Built to a standard. Built for the job.

Frequently Asked Questions

What does V-Spec mean?

V-Spec is ProTool's standardized build program for customer-specific or fleet equipment configurations. It establishes a defined specification that can be reproduced for future units.

Is this the same as the standard flagship drone trailer?

It shares the flagship equipment platform, but a V-Spec build is produced according to an approved customer or program configuration.

Is the enclosed trailer included?

No. The 7FT × 16FT enclosed trailer is sourced separately from the cleaning system.

How much pure water can it produce?

The dual HydroPanel 4.5 systems provide up to approximately 9 GPM combined rated production, depending on incoming water conditions.

How much water storage does it include?

The system has 200 gallons of raw water storage and 200 gallons of purified water storage.

Does it include wastewater recovery?

No wastewater reclaim tank is specified. The four 100-gallon tanks are dedicated to raw and purified water storage.

Are the hose reels electric?

Yes. The system includes four large-capacity ProTool electric reels.

Can the system operate remotely?

Yes. Skid Nexus Pro provides remote operation of the pressure washer, soft wash, rinse, water switching, and pure water delivery functions described above.

How many operators can use it?

Approximately one to five, depending on the cleaning methods, equipment demands, and available water flow.

Can the V-Spec configuration be changed?

Changes can be reviewed as part of the customer's approved program specification. Individual deviations should be coordinated with ProTool to maintain consistency across builds.
