Description
ProTool Single Operator System
Assembled or DIY Kit Option.
Kit Overview:
- 2 - 40in RO Membranes in SS Housings
Offering excellent filter life and lots of water flow
- 1 - 20" Carbon Filter and Housing
Long Lasting Carbon Filter, 120,000 Gallons
- Change once every 6 months
- 1 - 20" DI Filter and Housing
Great Capacity DI Cartridge, reduces Refills
- 2 - 12v pumps for 1ea for RO boost and 1ea for Water delivery
Produces 2 - 2.25 GPM of RO production into tank
Variable Pure Water Delivery flow from 0.5 to 3.5 GPM (managed by the pump controller) of pure water delivered to the brush.
- Pump controller offers precise control of water flow, extends pump and battery life
- Pre-assembled ready to mount to the wall (Assembled Version Only)
- *Note carbon/DI are not installed in the system on delivery.
- Everything you need to assemble is included, including the tank Just add or connect to your your 12V battery.
Installation Example:
Plate with Dual RO Membrane and the Carbon and DI Filters install in Van, 2 ROs pumps will make 2 Gallons per minute into the tank.
Installation as shown from just outside the Van
Pumps (RO Pressure and Operator Deliver Pump) and Controller are mounted on a plate and located within easy reach of the door

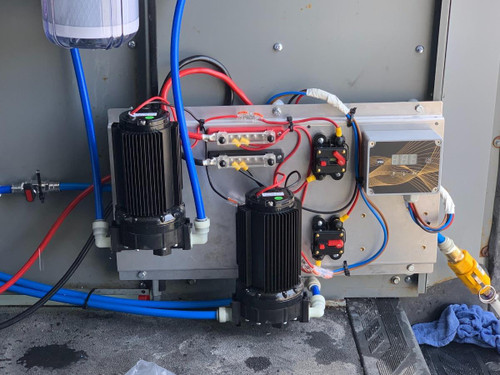

Pump Plate Detail
The Pump Controller extends battery life, controls water flow for the operator and is easy to use. 5 GPM.
The Pump Controller manages water flow from the pump from as low as 1/2 gallon a minute for 1st floor windows to 3.5 GPM for Solar Work
Installation as shown from just outside the Van
Pumps (RO Pressure and Operator Deliver Pump) and Controller are mounted on a plate and located within easy reach of the door
Water connection next to the pump plate is Bypass water out from the RO membranes.
Van Installation Details:
Tank Based system
This tank based DIY system is unmatched. Produce RO water in to a holding tank. Deliver pure water at 3.5 GPM +. All at an unbeatable price.
Excellent Water flow Similar to tap water, or DI tank pressure and flow.
Kit includes 55 gallon tank
Wall Mount for Housings
- Versatile Aluminum frame fits 2 stainless steel housings and 2 plastic housings.
- Mount in a van, on a flat bed truck or trailer
- 1 Carbon Filter
- 2 RO filters
- 1 DI filter
Wall Mount for Pumps
- 2 - 12V pumps for RO boost and delivery
- Bus bars to manage electrical wires
- 40 amp breaker switches
- Spring V16 Pump controller for full control over water flow for one user
- From 0.5 to 3.5 GPM of pure water
- System capable of running two Water-Fed pole operators off one line.
Shipping:
This kit ships on a pallet and Installation into your vehicle is required.
The installation would be the attachment of
The RO Membranes and 20in Housing Plate to the vehicle, wall.
The Pump Plate to an accessible position to be able to control the pumps
Fitment of the Tank and securing it in position.
Routing of the Plumbing, hoses tubes from inlet to the Pump plate, housing plate and water storage tank.
The RO membrane should be stored above 34 degrees F to avoid damaging the filter.
The main reason RO membranes fail in the field is the carbon filter dies quickly and is not maintained.
Regular maintenance of the Carbon Filter important to RO service life.
Which is why this kit offers a 6 month Carbon Filter life, Change in February and August
Many other systems with smaller Carbon filter require the Carbon filter to be replaced every 6 weeks.
The maintenance cost is kept low as the filters are relatively inexpensive, but poor maintenance can drive up the costs. RO's will fail after just a few months without a properly maintained carbon filter.
Battery and Reels, Hoses depicted are not included in kit
